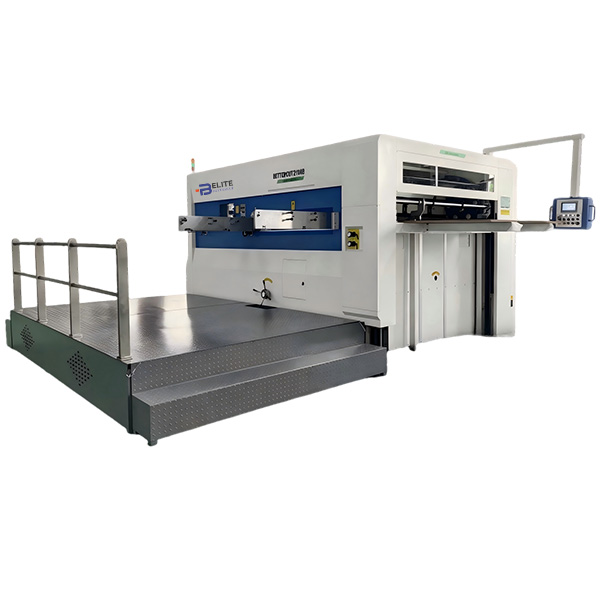

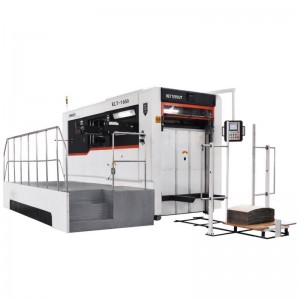

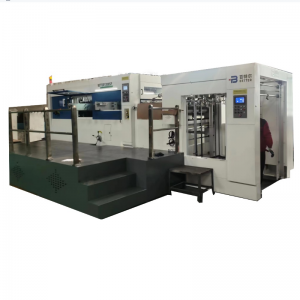

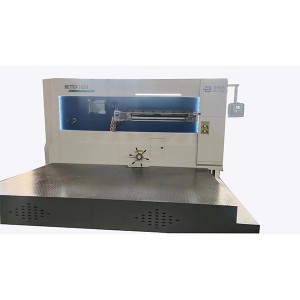

Large format ELT-1650B flatbed semi automatic die cutting and creasing machine

Large format ELT-1650B flatbed semi automatic die cutting and creasing machine

Short Description:

When you are looking for a semi-auto die cutter, “BETTERCUT” ELT-1650 is always the first choice for our customer, this machine has a wide range of materials processing from cardboard, corrugated board, litho laminated boxes to semi-rigid plastic materials and so on. Format: 1650×1210mm, 4000 sheets/hour, 300ton cutting force, high-pile delivery, stripper or without stripper for option.


Product Detail

Product Tags

1620BF-600×600
DETAILS SHOW

FEEDING SECTION

1.Effective manual feeding system.

2.Side guide to position paper pile center.

3.Automatic sheet pile lifting system.

4.Various sizes and thickness, wide range

DIECUTTING SECTION

1.Pneumatic lock-up system to ensure safe and operator friendly changing of the die-cutting plate.

2.Central position system for quick stripping die set up and job changeover.

3.Adopting the world famous brand of Bearings (NSK from Japan) and electronic components (Siemens, Omron and Schneider), precise control and die-cutting process can be achieved.

CUTTING SECTION
DELIVERY

DELIVERY SECTION

1.Photovoltaic device for safety entrance and operation.

2.High-pile pallet delivery.

3.Side and front joggers to ensure neat stacking.

4.Optional function: tape inserter with counter.

Electrical Section

1.Adopts electrical components of world famous brands for better performance and in time&local after-sale-service and maintenance.

2.Siemens’s Latest PLC technology to ensure safe and trouble free running.



987
Q5

Main Driving System

1.Mono-block casting chassis to reduce less vibration and achieve more stable performance and longer lifespan.

2.Deepened oil tank to make part of worm wheel working under lubrication oil for better lubrication.



Main Chain Drive

Heavy load and highly precise chain (RENOLD from UK) to achieve high tensile strength and wear resistance.

789
SPECIFICATION
Type ELT-1650
Max. paper size 1650×1210mm
Min. paper size 650×550mm
Max. cutting size 1620×1190mm
Cutting pressure 300 ton
Paper type Corrugated board≦9mm, cardboard≥250g
Cutting accuracy ±0.5 mm
Max. mechanical speed 4000s/h
Cutting rules height 23.8mm
Pressure adjustment ±1mm
Min. front margin Gripper ≥8 mm
Total power 25.5kw
Machine dimension 6770×4820×2330mm(include platform)
4778×2805×2330mm (not include platform)
Total weight ~22.5t
Features

CE certified

Maximum speed: 2,800 sph

Gripper bar positioning control for perfect registration

Top brand components with local spare parts availability

Siemens latest PLC technology

Photoelectrical detector for accurate process and safe operation

Quickly amortizable thanks to its investment / productivity ratio

Introduction by gentle impulse to grippers allowing to process a wide range of materials

Applicable to E,C, B, A Flute and double wall board up to 9mm

Standard Configuration111
No. Item Brand
1 PLC Siemens, German
2 VFD YASKAWA, Japan
3 Gripper bar chain IWIS, German
4 Touch screen Siemens, German
5 Photoelectric / amplifier Panasonic, Japan
6 Base crankshaft bearing NSK ,Japan
7 Gripper 65Mn
8 Base / upper and lower platform  QT500
9 Circuit breaker / contactor Schneider, France
10 Encoder OMRON,Japan
11 Pneumatic clutch OMPI, Italy
12 Photoelectric switch OMRON, Japan
Application
Ovesears Delivery

Professional wooden package and skilled loading teams
