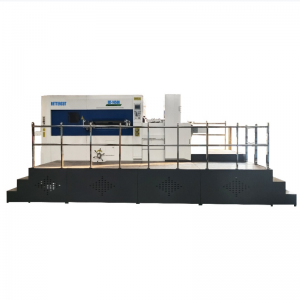

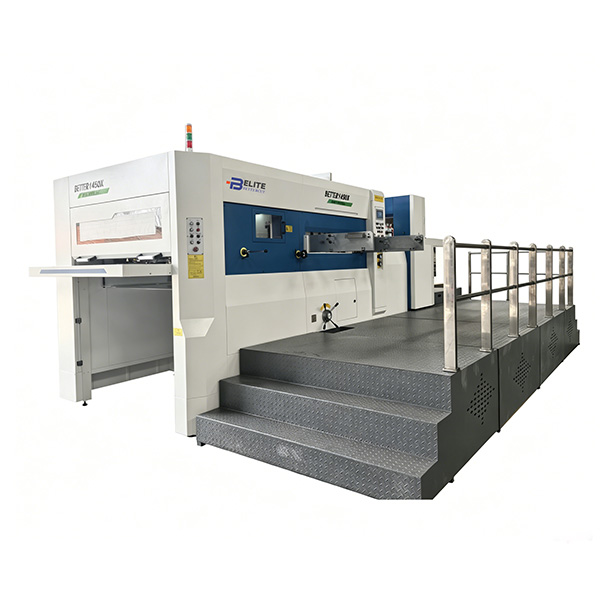

ELT-1450X Automatic Lead Edge Feeder Flatbed Die Cutter
Short Description:
When you are looking for a die cutter for corrugated board and folding cartons, the “BETTERCUT” ELT-1450X is absolutely an ideal and perfect machine for you.
ELT-1450X is our company’s high speed automatic flatbed die cutter in the large format of 1480×1080mm, a speed of 5,500 sheets per hour with 300tons cutting force, suitable for the corrugated board from 1-9mm. This machine includes all the experiences that have been made to date with automatic flat bed die cutter’s: With a new, wider, quieter and very precise lead-edge feeder for max. speed. 18% energy savings due to newly calculated curves for more efficient movements and smoother start and stop time.
Equipped with non-stop pallet delivery system with a high-pile device, it can help you to improve the efficiency greatly, trailer delivery with batch counter for option.
Product Detail
Product Tags
Integrated casting wallboard.
Durable and not easy to break.
Oversize worm and gear structure, high precision, high speed of die cutting is improved, greatly improve the efficiency
High speed and precise lead edge feeder,prevent the scratches during paper feeding,Variable frequency control air volume adjustment can meet the paper feeding requirements of different corrugated boards.
Overload protection mechanism, to realize the separation of master and slave in case of accidental overload.
Standard pallet delivery :flexible and high efficiency, Photoelectric detection device,safe and reliable.
Optional: non-top batch counter delivery to increase production efficiency.
| Parameter | ELT-1450X |
| Max.paper size | 1480×1080mm |
| Min.paper size | 550×480mm |
| Max.die cutting size | 1450×1050mm |
| Max.die cutting pressure | 300T |
| Paper Available size | 1mm≤corrugated board≤9 |
| Die cutting precision | ±0.5mm |
| Max.speed | 5500s/h |
| Cutting rule height | 23.8mm |
| Range of pressure adjustment | ±1mm |
| Min.front margin | 8mm |
| Max.wood frame size | 1480×1080mm |
| Total power | 31kw |
| Dimension（not include platform） | 6820×3020×2580 |
| Weight | ~23t |
Professional wooden package and skilled loading teams
