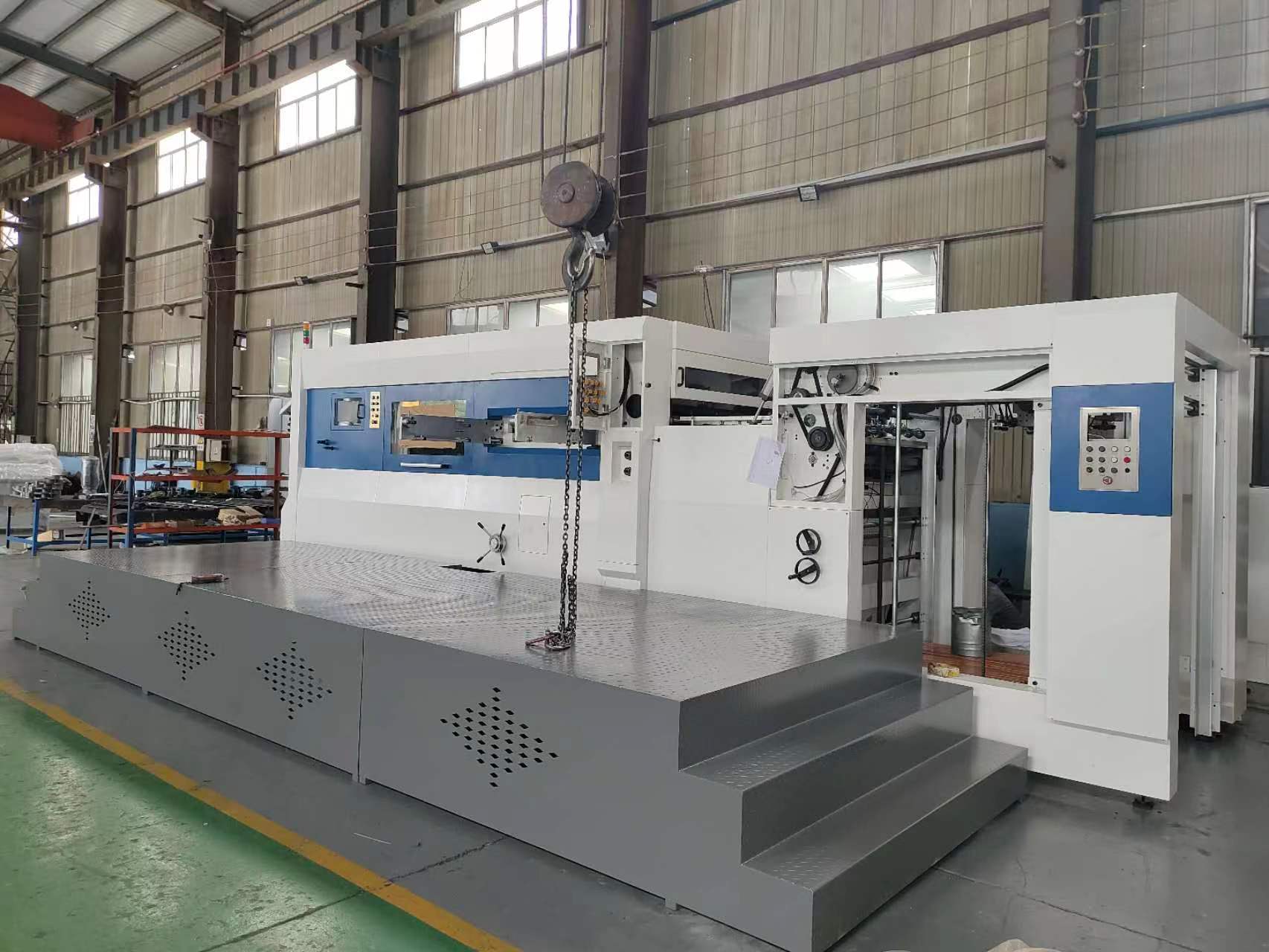

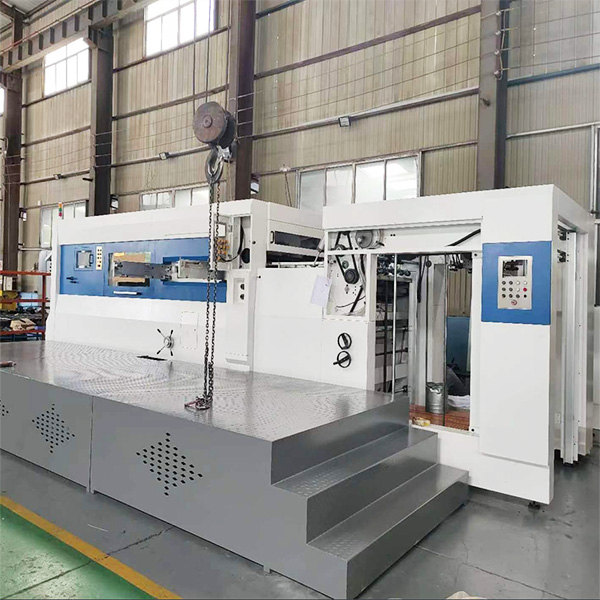

ELT-1300SF die cutting machine with semi-stripping

Short Description:

ELT-1300SF automatic die-cutting indentation machine is developed by our company in combination with similar products at home and abroad, which is suitable for corrugated paper and paperboard die-cutting with high precision of one-key conversion. The machine is operated according to different paper thickness, different paper way, with zero scratch and multi-purpose in one machine.

Send email to us

Product Detail

Product Tags

Integrated casting wallboard.

Durable and not easy to break.

Oversize worm and gear structure, high precision, high speed of die cutting is improved, greatly improve the efficiency

Adopts 4 suction nozzles, 5 feeder nozzles, Servo motor control, more accurate, can achieve single sheet paper feeding and fish scale paper feeding, easy to operate.

Overload protection mechanism, to realize the separation of master and slave in case of accidental overload.

Adopts central positioning system, quick and convenient adjustment of stripping die. Equipped with front waste removal device, achieve full stripping.

High pile pallet delivery :flexible and high efficiency, Photoelectric detection device, safe and reliable.

Item	Brand name
PLC	Siemens, German
Inverter	Yaskawa Japan
Gripper chain	IWIS,German
Main bearing	NSK, jAPN
Main drive belt	Carlisle, America
Encoder	Omron, Japan
breaker	Schneider, German
proximity switch	Panasonic, Japan
Air Clutch	OMPI, Italy
Intermittent mechanism	Taiwan
Pneumatic components	Taiwan Airtac
Die cutting plate	65Mn
Main wall board	QT500-7
upper and lower platform	QT500-7

The machine adopts domestic advanced three-dimensional cam indexing mechanism, electric pressure regulating device, pneumatic locking plate, pneumatic sampling and overload protection device. The high-precision main chain drive adopts Germany brand Iwis, pneumatic clutch is also imported.

The paper feeding system adopts double servo paper feeding control system, which can be used for fish scale paper feeding or single paper feeding. It is convenient and fast with one key conversion.

The front lay and side pull gauge have photoelectric detection to ensure the high accuracy of the die cutting

The pneumatic plate locking mechanism can make the plate changing quick and convenient.

Imported pneumatic clutch with stable and reliable combination and separation, small braking angle and large torque transmission.

imported Japan Omron PLC controller and human-machine interface, digital display of the working speed of the machine, and fault display of the machine make the troubleshooting operation very convenient. Realize automatic control and real-time monitoring of all parts of paper feeding, die cutting and delivery, and cooperate with safety devices of all parts to ensure safe and reliable operation.

The die cutting pressure can be adjusted separately front and back, and manual turning is convenient and labor-saving.

Automatic paper delivery and flush loading make the paper delivery convenient and orderly.

The steel plate suspension function allows the steel plate to be easily pushed in and out.
